Đông hồ đo lưu lượng dạng điện từ 1400A hãng Tektrol
Mã sản phẩm:
Đồng hồ đo lưu lượng 1400A hãng Tek Trol
Xuất xứ:
USA - Mỹ
Email:
sale12@tmpvietnam.com
Giá:
Liên hệ : 0915254069 - 0978563970
Mô tả:
Đại lý phân phối đồng hồ đo lưu lượng dạng điện từ 1400a hãng tektrol tại việt nam, electromagnetic flowmeter 1400a tektrol.
Số lượng
Đồng hồ đo lưu lượng dạng điện từ 1400A hãng Tektrol.
Thông tin sản phẩm : Tại đây.
Datasheet : Tại đây
Một số mô tả về thiết bị :
-
Wide range of nominal diameter Size ½” to 28” (15 mm to 700 mm) with IP68 protection
-
Easy maintenance due to no moving parts
-
Uninfluenced by temperature, pressure, viscosity, and density
-
Used for wide application, can measure conductive fluid, without reference to fibre, solid or suspending material contained in liquid
-
High turndown ratio up to 1:100
-
It features high intelligence, with back light LCD display, menu setting control, three grades password protection, two-way measuring, slight signal removal, auto flow compensation, and other function.
-
Features high intelligence, which ensure empty pipe detection, self-detection, self-diagnostic functions, and safety alarms for upper and lower limit
-
Features SMART excitation, which ensures zero-point stability, high reliability, and low power consumption
-
Lining and electrode available in various materials which can measure nearly all conductive fluids
-
It has multiple signal output, pulse, Modbus RS485 or HART® or 4 to 20 mA
-
The power supply system has good voltage vibration ability
-
Meters Batching and Blending Totalization
Thông số kĩ thuật :
Service | Compatible conductive liquids |
Measuring Range | For flow range please refer the catalog |
Lining Materials | PTFE and Synthetic rubber |
Electrode Material | Stainless Steel, Hastealloy C |
Accuracy | ±0.5% |
Repeatability | 0.15% |
Ambient Temperature Limits | Sensor (Remote Mount): -4 °F to 158 °F (-20 °C to 70 °C) |
Converter: -4 °F to 122 °F (-20 °C to 50 °C) |
|
Integral Type: 14 °F to 122 °F (-10 °C to 50 °C) |
|
Ambient Magnetic Field | ≤ 400 A/m |
Pressure Limit | ≤ 150 PSI |
Mounting Orientation | Horizontal or vertical |
Process Connection | #150 ANSI or AWWA flanges |
Output Signal | Pulse and 4 to 20 mA or Modbus RS485 or 4 to 20 mA with HART |
Power Requirements | 18 VDC to 28 VDC or 85 VAC to 220 VAC |
Conductivity | ≥5 μs/cm |
Enclosure Rating | IP68 |
Weight | Refer catalog for net weight |
Agency Approvals | CE |

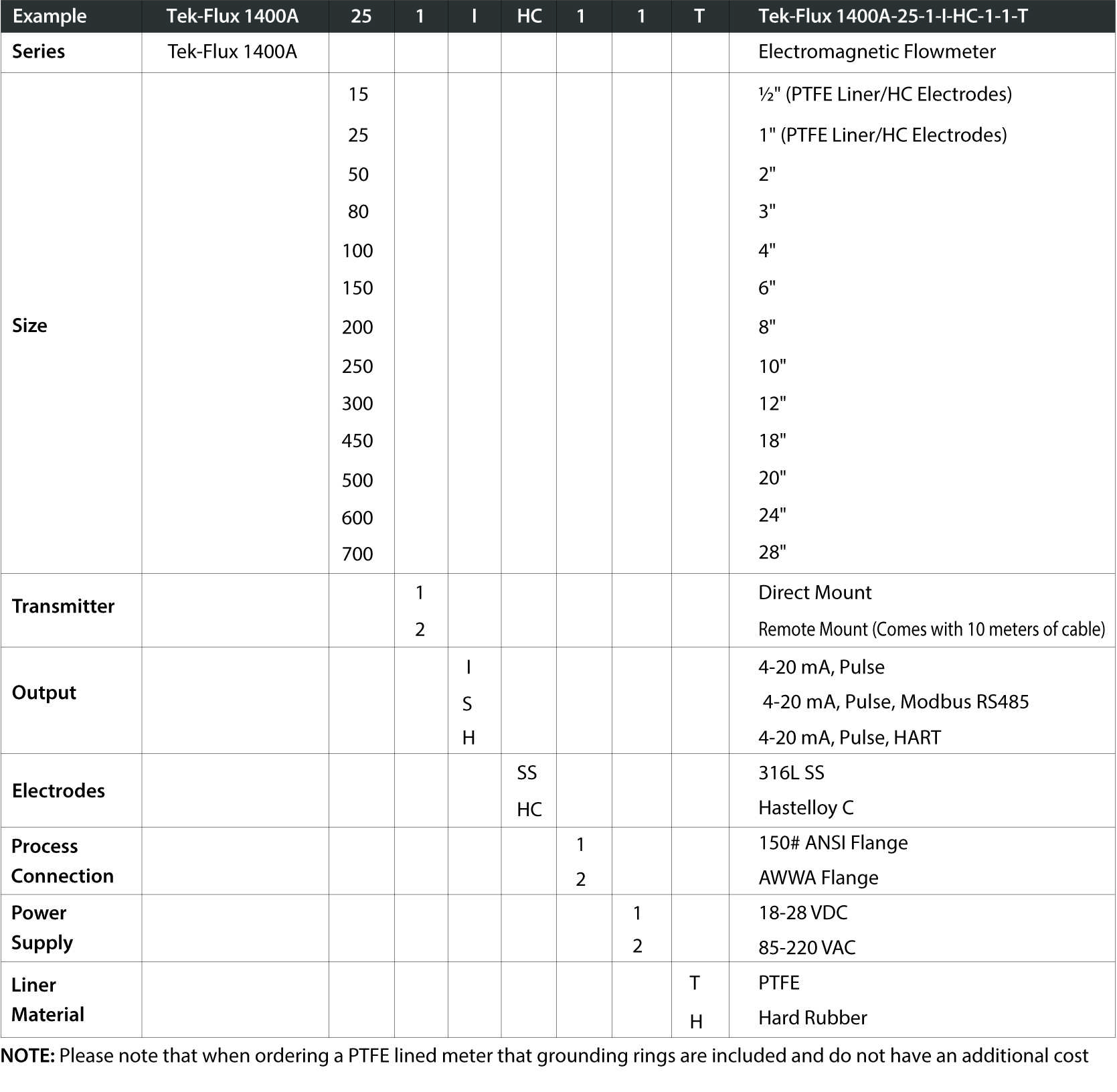

Bảng chọn code :
